Commercial-Grade PVC Strip Door Kit – 1.25m Wide x 3m High

Recommended Applications

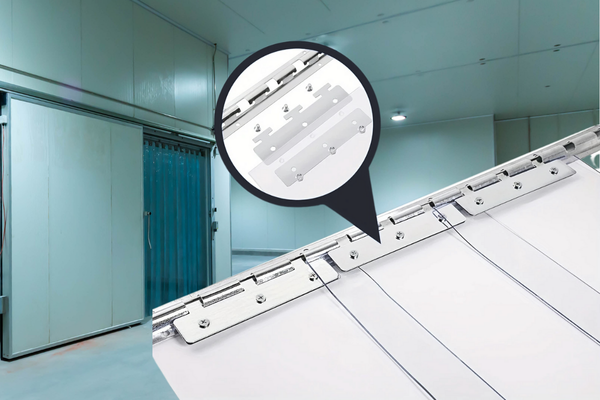

Food Processing & Cold Storage

• Cool rooms, refrigerated warehouses – Maintains temperature control while allowing forklift access
• Food-grade facilities – AISI stainless steel resists corrosion in wet/sanitary environments
• Abattoirs & dairy plants – Withstands frequent washdowns without rusting

Industrial & Warehouse Use

• Loading docks – Reduces wind/dust ingress while permitting pallet jack access
• Workshops & factories – Creates flexible barriers between production zones
• Packing areas – Minimises energy loss in climate-controlled spaces

Commercial & Agricultural

• Supermarket backrooms – Insect-proof barrier for delivery areas
• Winery barrel rooms – Controls humidity fluctuations

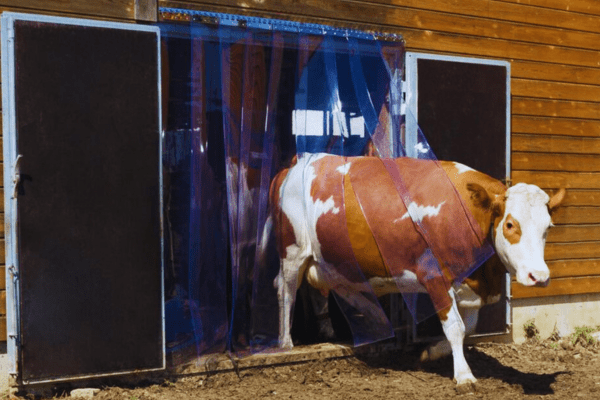

• Farm machinery sheds – Dust partition for equipment storage

Specialty Environments

• Pharmaceutical prep areas – Meets hygiene requirements with cleanable materials
• Florist cool rooms – Preserves chilled storage conditions

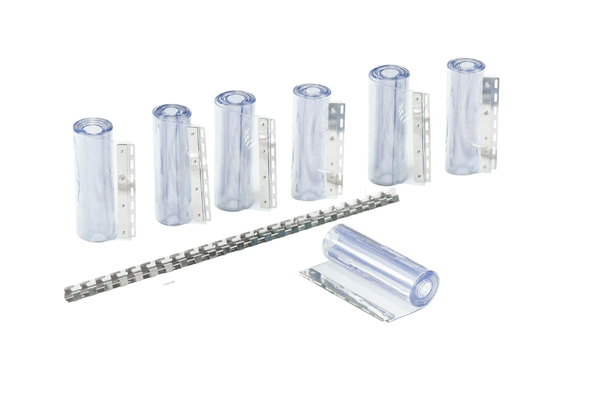

What’s Included in Each Kit

Everything you need for fast and secure installation:

Specifications

Suitable For:

• Warehouse and workshop doorways
• Commercial kitchens and cool rooms
• Storage areas with moderate equipment or foot traffic
• Loading docks, delivery zones, and breezeways

Not suitable for heavy machinery (e.g., forklifts) – for vehicle access, consider upgrading to kits with 300mm wide x 3mm strips.

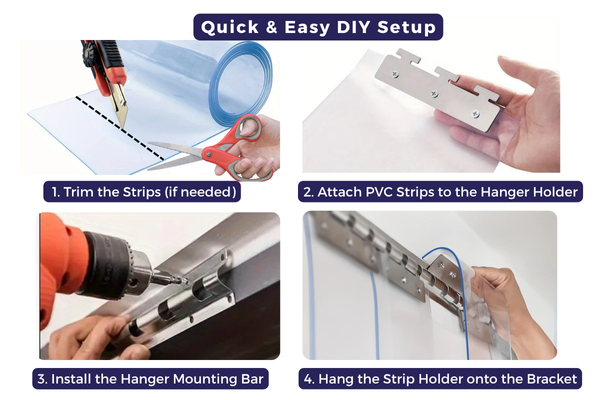

DIY Installation Guide

Installing your PVC strip curtain is simple:

1. Trim (If Required) – Cut strips to fit your opening height.
2. Install Mounting Bar – Screw the bracket to wall face.

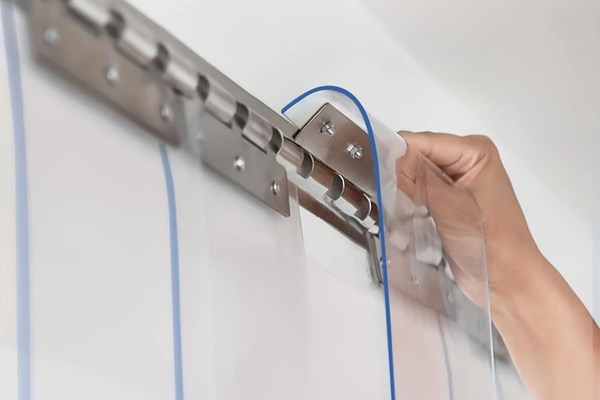

3. Hang the Curtain – Clip or slide strip holders into the bar.

How to Measure Your Door for a PVC Strip Curtain

Step 1: Measure the Door Opening

• Width – Inside frame-to-frame measurement
• Height – From floor to the top of the door frame

Step 2: Choose the Right Strip Size

Use this guide to select the appropriate dimensions for your application:

Fit for Different Opening Sizes

Customising for Narrower Doorways (Under 1.25m): Our strip curtain system is highly adaptable. If your doorway is narrower than 1.25m:

• The mounting bar can be easily trimmed to achieve a perfect, custom fit.
• You can reduce the number of strips used or increase their overlap to ensure optimal coverage and thermal sealing.

Extending for Wider Doorways (Over 1.25m): For openings exceeding 1.25m, our modular design allows for easy expansion:

• Simply install multiple kits side-by-side to cover wider widths effectively.
• The mounting bars are designed to be installed end-to-end, creating a seamless and continuous curtain.
• Should you require further extension, additional mounting bars and strips are readily available for separate purchase.
• Have questions or need help? Contact us — we’re here to assist

Adjusting Strip Height

1. • PVC strips are supplied at 3m high but can be cut to your exact required height.
   • Always measure from the finished floor level for accuracy.
   • Use a sharp utility knife or heavy-duty scissors for clean, straight cuts.
   • Smooth cut edges with sandpaper if needed.

Pro Installation Tips

• Maintain consistent 50mm strip overlap to ensure optimal insulation and airflow control.
• Use a spirit level to align the mounting bar for proper strip alignment.
• Face-Mounted Setup: Install the mounting bar above the door frame for best results.

Order now for a tough, clear-view pvc strip curtain solution that’s built to handle more demanding spaces—flexible, protective, and easy to install.
